Main Tester as Remote

You can use the Versiv mainframe tester (display unit) as a remote for twisted pair and coax cable tests and also for fiber loss/length tests when using the CertiFiber Pro modules.  When you do loss/length tests with mainframe testers at both ends, you can use FiberInspector video probes with both testers for faster inspections of fiber endfaces.

To use a Versiv mainframe tester as remote:

Tap TOOLS then tap Main as Remote



.



Tap STOP to exit Main as Remote mode.



The main unit acting as the Remote will show the status of the test as well as the result of the test (Pass or Fail).



광선로 검사

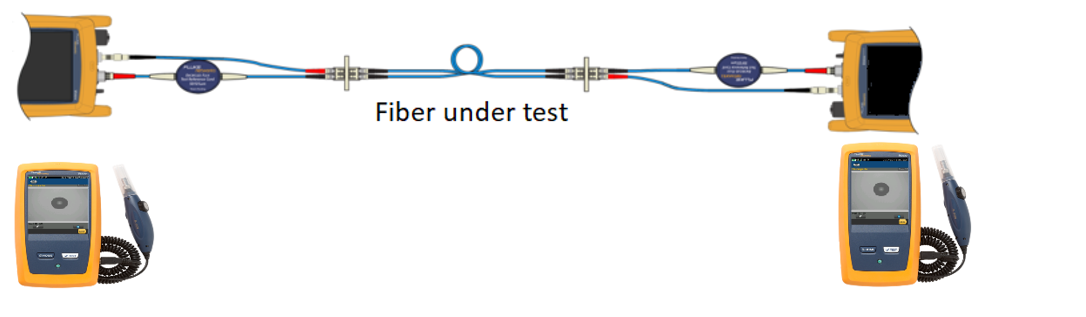

When you do loss/length tests with the main testers at both ends of the link, you can use the FiberInspector video probes with both testers for faster fiber end face inspection and certifications.

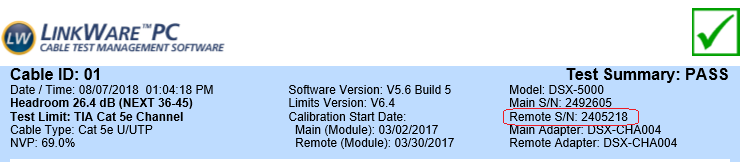

Reports in LinkWare PC and in LinkWare Live will list a mainframe unit in Remote Mode as a Remote Unit, since it was that mode at the time the test was run.
